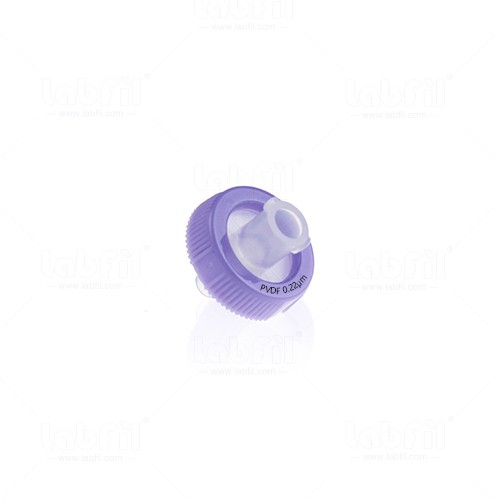

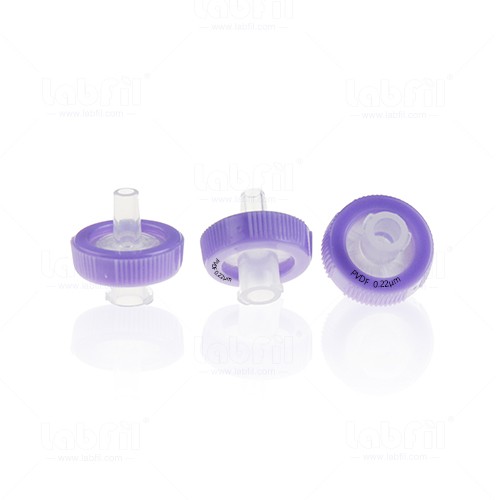

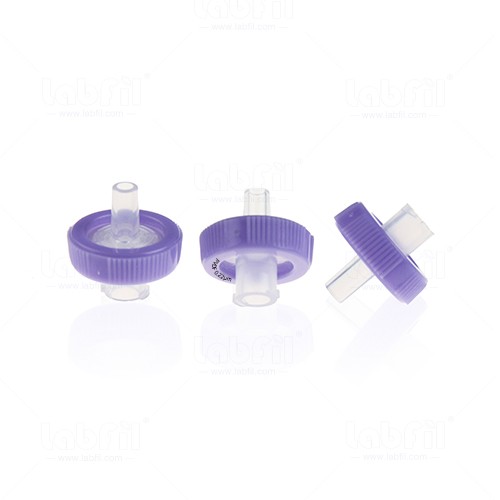

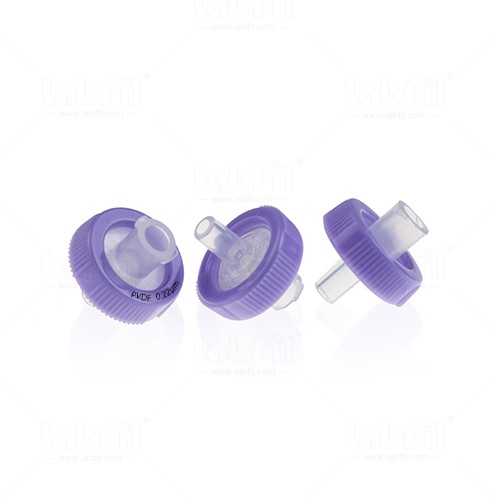

Labfi PVDF Hydrophobic syringe filter is used for general biological filtration and in cases where high protein recovery is desired. It has slight hydrophilic properties and can be used for clear filtration and sterilization of aqueous solutions.
Technical Data
Materials | Housing | PP | ||
Membrane | PVDF | |||
Wettability | Hydrophobic | |||
Physical Properties | Pore Size | 0.22 μm, 0.45 μm | ||
Filter Diameter | 13mm | 25mm | 33mm | |
Filtration Area | 0.72cm² | 3.4cm² | 4.5cm² | |
Maximum Operating Pressure | 6bar | 3bar | 2bar | |
pH Range | 2.0 – 13.0 |
Product Information
SKU | Material | Pore Size | Diameter(mm) | Sterile | Printing | Outer Ring Color | Packaging |
C0000654 | PVDF Hydrophobic | 0.22um | 13 | NO | YES | Light Purple | 100pcs/pk. |
C0000655 | PVDF Hydrophobic | 0.45um | 13 | NO | YES | Purple | 100pcs/pk. |
C0000656 | PVDF Hydrophobic | 0.22um | 25 | NO | YES | Light Purple | 100pcs/pk. |
C0000657 | PVDF Hydrophobic | 0.45um | 25 | NO | YES | Purple | 100pcs/pk. |
C0000670 | PVDF Hydrophobic | 0.22um | 33 | NO | YES | Light Purple | 100pcs/pk. |
C0000671 | PVDF Hydrophobic | 0.45um | 33 | NO | YES | Purple | 100pcs/pk. |
Advantages
* Hydrophobic property.
* High mechanical and tensile strength.
* Broad chemical and temperature resistance.
* Suitable for the filtration of gas, steam and high temperature liquids.
* Compatibility with various sterilizing methods.
* Normallv used with pH range 2-13.
Application
* Solvent filtration: The hydrophobic properties of PVDF Hydrophobic Syringe Filter make it an ideal choice for solvent filtration, especially for the filtration of organic solvents.
* Gas filtration: Its hydrophobic properties also make it suitable for the filtration of air and gas, ensuring the purity and efficiency of the filtration process.
* Sample preparation: In analytical techniques such as HPLC and GC, this filter can ensure the purity of the sample and improve the accuracy and reliability of the analytical results.
Select by Sample Volume
Sample Volume | Filter Diameter | Filtration Area | Hold-up Volume | Retention Volume |
< 10mL | 13mm | 0.72 cm² | < 25μl | < 25mL |
10mL to 100mL | 25mm | 3.4 cm² | < 100μl | < 100mL |
100mL to 200mL |
33mm |
4.5 cm² |
< 125μl |
< 125mL |
Select by Pore Size
Cleaning Operation | Optimal Pore Size |
Sterile Filtration | 0.20 µm |
Thorough Cleaning | 0.45 µm |
Clear Filtration | 1 - 2 µm |
Pre-Filtration | 5 µm |
Select by Diameter
Filter Diameter | Volume to be Filtered |
4 mm | < 1 ml |
13 mm | 1 - 10 ml |
25 mm | 10 - 100 ml |
30 mm | > 100 ml (fast filtration) |
Select by Pressure of Syringe Volumes
Syringe Volume | Pressure Bar / PSI |
1 ml | 10 / 150 |
3 ml | 7.0 / 100 |
5 ml | 5.0 / 75 |
10 ml | 3.5 / 50 |
20 ml | 2.0 / 30 |
How to use a syringe filter?
1. Select the Right Filter:
Membrane Type: Ensure compatibility with your sample (e.g., PTFE for organic solvents, PES for aqueous solutions).
Pore Size: Choose the appropriate pore size (commonly 0.22 µm or 0.45 µm).
2. Prepare the Syringe:
Attach the syringe filter to the syringe securely.
Ensure both are sterile if required.
3. Draw the Sample:
Fill the syringe with the sample, avoiding air bubbles.
4. Filter the Sample:
Hold the syringe with the filter attached.
Press the plunger gently to pass the sample through the filter into a clean container.
5. Post-Filtering:
Ensure the entire sample has been filtered.
Dispose of the used filter according to your lab’s guidelines.
Tips:
Apply steady pressure to avoid damaging the filter.
Pre-filter or centrifuge samples if clogging occurs.
