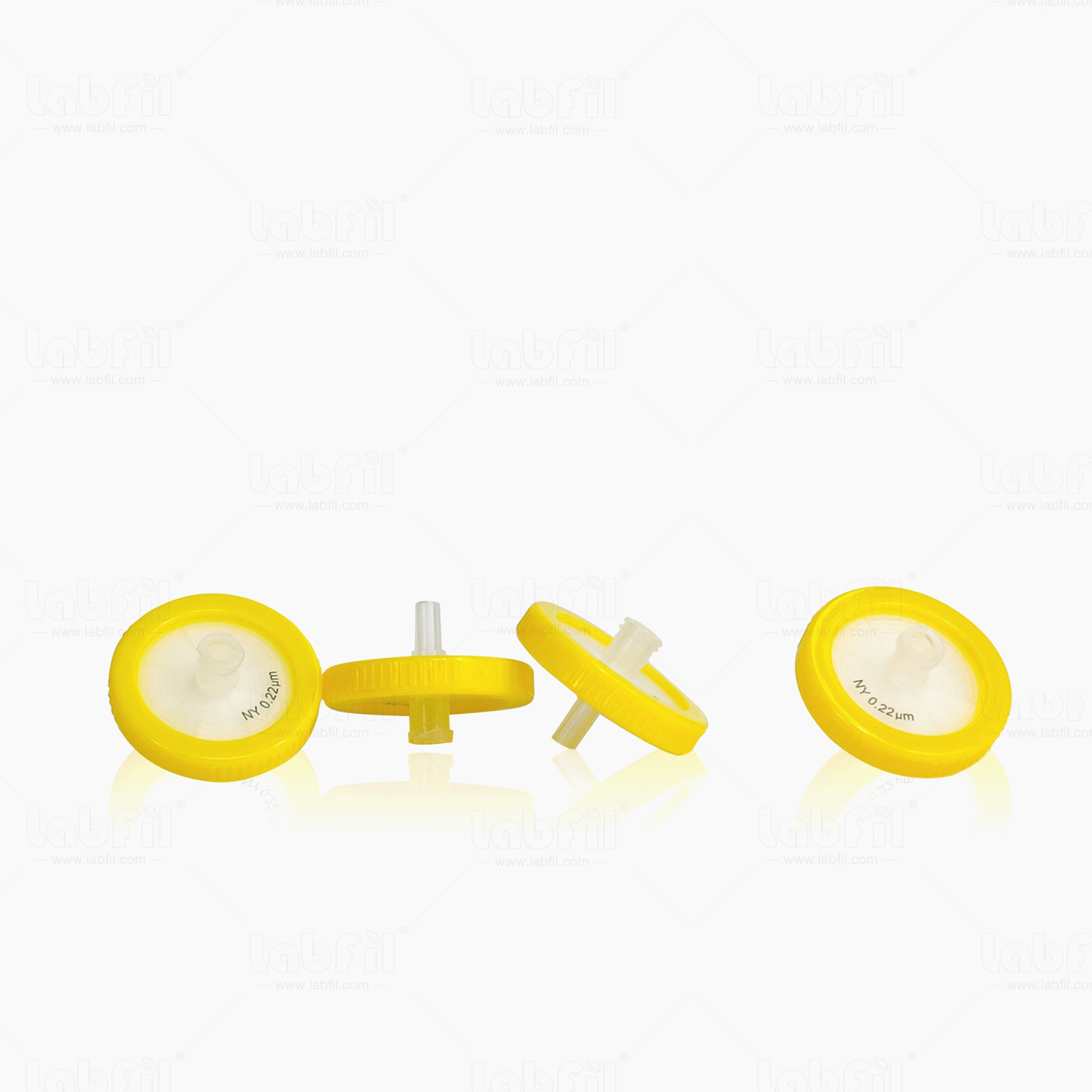

Labfil Hydrophilic Nylon Syringe Filters Non-Sterile 100pcs/pk

Description

Labfil Nylon filter devices are designed for sterilization and clarification of aqueous and solvent samples in a wide array of analytical and research applications. They are primarily used to filter small aqueous and organic samples with low hold-up volume in order to inject them directly into the HPLC sample loop systems.

Technical Data

Materials	Housing	PP
	Membrane	Nylon
	Wettability	Hydrophilic
Physical Properties	Pore Size	0.22 μm, 0.45 μm
	Filter Diameter	13mm	25mm	33mm
	Filtration Area	0.72cm²	3.4cm²	4.5cm²
	Maximum Operating Pressure	6bar	3bar	2bar
	pH Range	5.0 – 12.0

Product Information

SKU	Material	Pore Size	Diameter(mm)	Sterile	Printing	Outer Ring Color	Packaging
C0000638	Nylon	0.22um	13	NO	YES	Light Yellow	100pcs/pk.
C0000639	Nylon	0.45um	13	NO	YES	Yellow	100pcs/pk.
C0000640	Nylon	0.22um	25	NO	YES	Light Yellow	100pcs/pk.
C0000641	Nylon	0.45um	25	NO	YES	Yellow	100pcs/pk.
C0000662	Nylon	0.22um	33	NO	YES	Light Yellow	100pcs/pk.
C0000663	Nylon	0.45um	33	NO	YES	Yellow	100pcs/pk.

Advantages

* Naturally hydrophilic.

* General sample preparation.

* No pre-rinsing is required.
* Wide chemical compatibility range.

* Strength and dimensional stability.
* Low extractables.

Applications

* Sterilization, clarification of aqueous and organic solvent solutions.
* HPLC sample preparation.
* Chromatography.
* Hydraulic Fluids and Machined Parts.

Select by Sample Volume

Sample Volume	Filter Diameter	Filtration Area	Hold-up Volume	Retention Volume
< 10mL	13mm	0.72 cm²	< 25μl	< 25mL
10mL to 100mL	25mm	3.4 cm²	< 100μl	< 100mL
100mL to 200mL	33mm	4.5 cm²	< 125μl	< 125mL

Select by Pore Size

Cleaning Operation	Optimal Pore Size
Sterile Filtration	0.20 µm
Thorough Cleaning	0.45 µm
Clear Filtration	1 - 2 µm
Pre-Filtration	5 µm

Select by Diameter

Filter Diameter	Volume to be Filtered
4 mm	< 1 ml
13 mm	1 - 10 ml
25 mm	10 - 100 ml
30 mm	> 100 ml (fast filtration)

Select by Pressure of Syringe Volumes

Syringe Volume	Pressure Bar / PSI
1 ml	10 / 150
3 ml	7.0 / 100
5 ml	5.0 / 75
10 ml	3.5 / 50
20 ml	2.0 / 30

How to use a syringe filter?

1. Select the Right Filter:
Membrane Type: Ensure compatibility with your sample (e.g., PTFE for organic solvents, PES for aqueous solutions).
Pore Size: Choose the appropriate pore size (commonly 0.22 µm or 0.45 µm).

2. Prepare the Syringe:
Attach the syringe filter to the syringe securely.
Ensure both are sterile if required.

3. Draw the Sample:
Fill the syringe with the sample, avoiding air bubbles.

4. Filter the Sample:
Hold the syringe with the filter attached.
Press the plunger gently to pass the sample through the filter into a clean container.

5. Post-Filtering:
Ensure the entire sample has been filtered.
Dispose of the used filter according to your lab’s guidelines.

Tips:
Apply steady pressure to avoid damaging the filter.
Pre-filter or centrifuge samples if clogging occurs.
